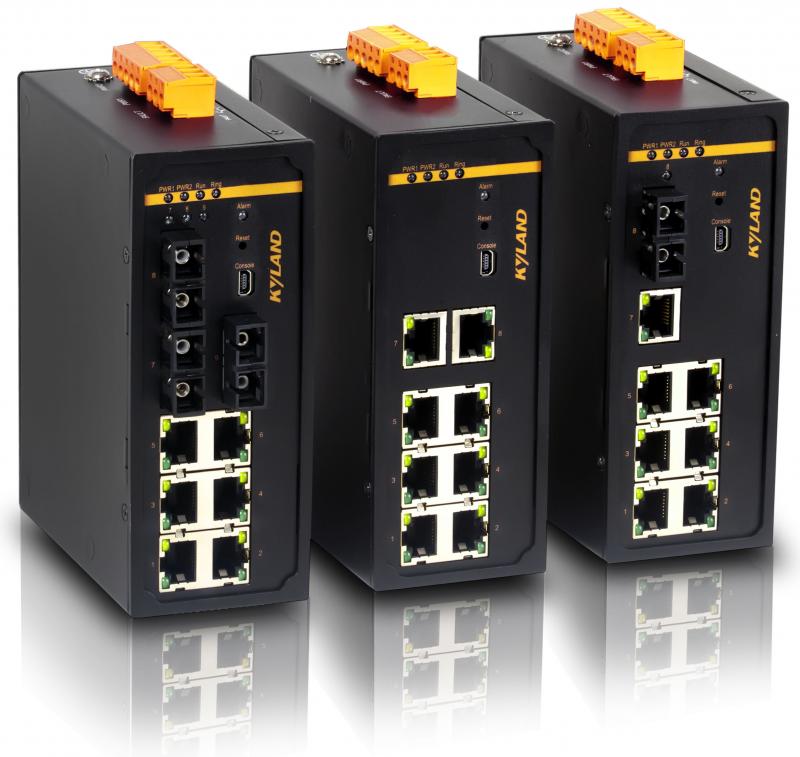

Kien 7009 L2 switch
Industriell managerad L2 switch för montage på DIN-skena
Kien 7009 är en managerad L2-switch för industriellt bruk som stödjer fiberanslutning, har dubbel strömmatning och är klassad till IP40
för att säkerställa tillförlitlig drift även i tuff miljö.
Kien 7009 finns i versioner med 0-3 st valbara anslutningar med fast Ethernet via fiber samt 6-8 st portar med 10/100Base-TX RJ45
(0+8, 1+7, 2+4, 2+6 samt 3+6).
Swithen stödjer bland annat DT-ring, DRP, STP/RSTP och har en temperaturtålighet på -40°C till +75° och spänningsmatning 12-24VDC.
Även andra optioner med fiberanslutningar, antal ETH-portar samt med 24-48DVC eller 100-240VAC strömmatning finns vid behov,
kontakta oss för offert.
| Switching | Support VLAN, PVLAN |
| Support port flow control (New) | |
| Support port speed limit (New) | |
| Redundancy | Support DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms |
| Support DRP with the recovery time<20ms | |
| Support STP/RSTP (New) | |
| Service Quality | Support SP, WRR queue scheduling (New) |
| Management & Maintenance | Support Console, Telnet, WEB management methods |
| Support SNMPv1/v2c/v3, Kyvision centralized management | |
| Support software upgrade by FTP and TFTP | |
| Support power, port and ring alarm | |
| Support RMON | |
| Support port mirroring (New) | |
| Support LLDP | |
| Support Link-check | |
| IP Management | Support DHCP client (New) |
| Standard | IEEE 802.3i(10Base-T) |
| IEEE 802.3u(100Base-T and 100Base-FX) | |
| IEEE 802.3x(Flow Control) | |
| IEEE 802.1p (Class of Service) | |
| IEEE 802.1Q(VLAN) | |
| IEEE 802.1w (RSTP) | |
| Switch Properties | Priority Queues: 4 |
| Number of VLANs: 256 | |
| VLAN ID: 1–4093 | |
| MAC Table: 8K | |
| Packet Buffer: 1Mbit | |
| Packet Forwarding Rate: 1.4Mpps | |
| Switching Delay:<5μs | |
| Interface | Fast Ethernet Port: |
| 100Base-FX, SM/MM, SC/ST/FC connector | |
| 10/100Base-T(X), RJ45 port | |
| Console Port: Mini USB | |
| Alarm Contact: | |
| 3-pin 5.08mm-spacing plug-in terminal block,250VAC/220VDC Max,2A Max | |
| LED | LEDs on Front Panel |
| Running LED: Run | |
| Alarm LED: Alarm (12/24/48VDC model only) | |
| Power LED: PWR1,PWR2 | |
| Ring LED: Ring | |
| Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port) | |
| Button | Reset: Reboot and restore default configuration |
| Power Requirements | Power Input: |
| 100-240VAC, 50/60Hz; 110-220VDC(85-264VAC/77-300VDC) | |
| 24-48VDC(18-72VDC) | |
| 12-24VDC(9-36VDC) | |
| Power Terminal: | |
| 5-pin 5.08mm-spacing plug-in terminal block | |
| Power Consumption:<8.1w | |
| Overload Protection: Support | |
| Reverse Protection: Support | |
| Redundancy Protection: Support (12/24/48VDC) | |
| Physical Characteristics | Housing: Metal |
| Cooling: Natural convection, fanless | |
| Protection Class: IP40 | |
| Dimension: | |
| 53.6mm×135mm×106.5mm(W×H×D) (12/24/48VDC) | |
| 66mm×135mm×107.5mm (W×H×D) (220VAC/DC) | |
| Weight: 0.76Kg | |
| Mounting: DIN-Rail or Panel Mounting | |
| Environmental Limits | Operating Temperature: |
| -40°C to +85°C(12/24/48VDC) | |
| -40°C to +75°C(220VAC/DC) | |
| Storage Temperature: -40°C to +85°C | |
| Ambient Relative Humidity: 5-95% (non-condensing) | |
| Quality Assurance | MTBF: 385,000 hrs |
| Warranty: 5 years | |
| Approvals | CE(EMC), CE(LVD), FCC: Models with HV:100-240VAC,50/60Hz;110-220VDC |
| UL508, Class I Div 2: Models with L2:24-48VDC | |
| CE(EMC), FCC: Models with L2:24-48VDC and L5:12-24VDC | |
| Industry Standard | EMI: |
| FCC CFR47 Part 15,EN55022/CISPR22,Class A | |
| EMS: | |
| IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) | |
| IEC61000-4-3(RS) 10V/m(80MHz–2GHz) | |
| IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV | |
| IEC61000-4-5(Surge) Power Port: ±2kV/DM, ±4kV/CM; Data Port:±2kV | |
| IEC61000-4-6(CS) 10V (150kHz–80MHz) | |
| Machinery: | |
| IEC60068-2-6 (Vibration) | |
| IEC60068-2-27 (Shock) | |
| IEC60068-2-32 (Free Fall) |
