KOM600 Fiberkonverter
1-ports konverter mellan fiber och koppar
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.

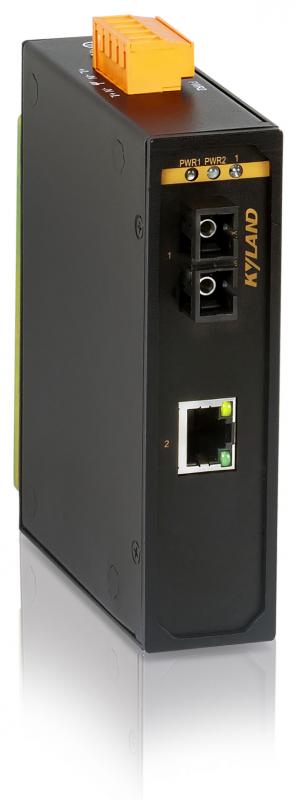

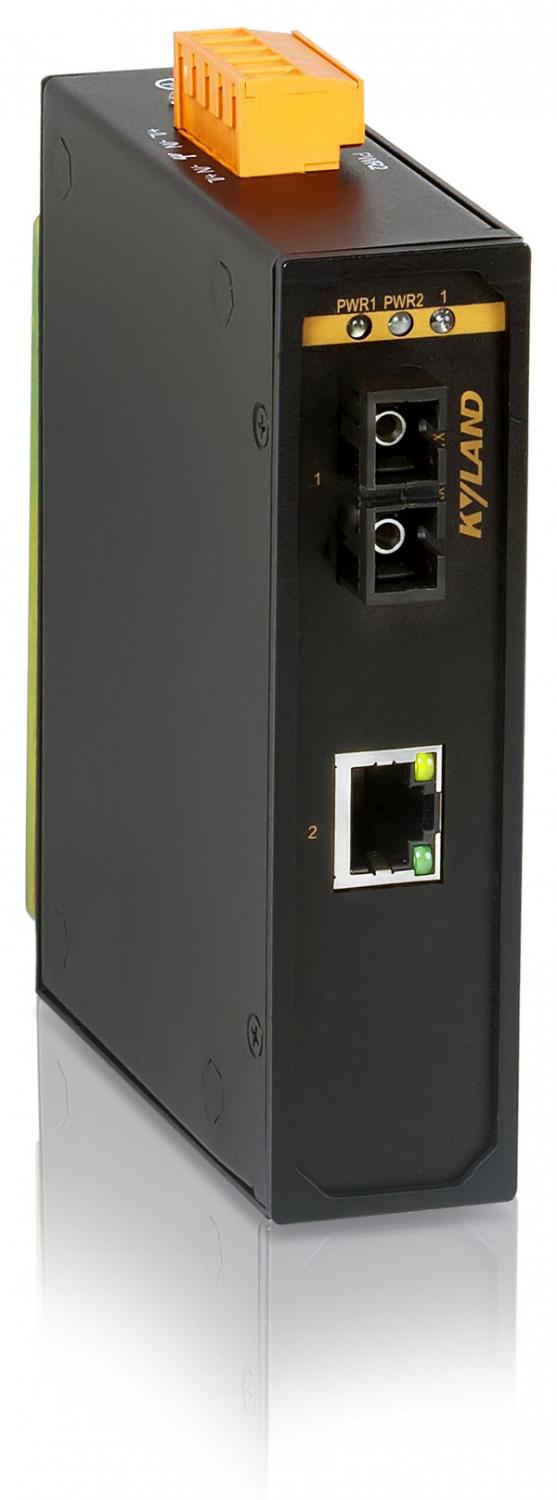

KOM600 Fiberkonverter
1-ports konverter mellan fiber och koppar
KOM600 Gateway är en mediakonverterar mellan 1st 100Base-FX fiber och 1st 10/100Base-T(X) koppar port. Konvertern är väldigt strömsnål och drar vid full last mindre än 2 watt.
KOM600 har dubbel strömmatning och IP40 klassad för att säkerställa tillförlitlig drift även i tuff miljö, och den stödjer LFP (Link Fault Pass-Through).
| Standard | IEEE 802.3i(10Base-T) |
| IEEE 802.3u(100Base-TX and 100Base-FX) | |
| Interface | Fast Ethernet Ports |
| 100Base-FX, SM/MM port, FC/SC/ST connector | |
| 10/100Base-T(X) RJ45 port | |
| LED | Indicators in the front panel |
| Power LED: PWR1, PWR2 | |
| Interface LED: Link/ACT, Speed (RJ45 Ports); Link/ACT(Fiber Ports) | |
| Power Requirements | Power Input: |
| 24-48VDC(18-72VDC) | |
| 12-24VDC(9-36VDC) | |
| Power Terminal: | |
| 5-pin 5.08mm-spacing plug-in terminal block | |
| Power Consumption<2w | |
| Overload Protection: Support | |
| Reverse Connection Protection: Support | |
| Redundancy Protection: Support | |
| Physical Characteristics | Housing: Metal |
| Heat Dissipation Mode: Natural cooling, without fans | |
| Protection Class: IP40 | |
| Dimensions: | |
| 30mm×115mm×91.5mm (W×H×D) | |
| Weight: 0.46kg | |
| Mounting: DIN-Rail or Panel mounting | |
| Environmental Limits | Operating Temperature: -40°C to +85°C |
| Storage Temperature: -40°C to +85°C | |
| Ambient Relative Humidity: 5-95% (non-condensing) | |
| Quality Assurance | MTBF: 546,000 hrs |
| Warranty: 5 years | |
| Approvals | CE(EMC), FCC: Models with L2:24-48VDC |
| UL508, Class I Div 2: Models with L2:24-48VDC | |
| Industry Standard | EMI: |
| FCC CFR47 Part 15,EN55022/CISPR22,Class A | |
| EMS: | |
| IEC61000-4-2(ESD) ±6kV(contact),±8kV(air) | |
| IEC61000-4-3(RS) 10V/m(80MHz-2GHz) | |
| IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV | |
| IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±1kV | |
| IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz) | |
| Mechanical standards: | |
| IEC60068-2-6 (Vibration), | |
| IEC60068-2-27 (Shock), | |
| IEC60068-2-32 (Free Fall) |
