Opal 10G industriell switch
10-portars Gigabit Ethernet switch för montage på DIN-skena
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.

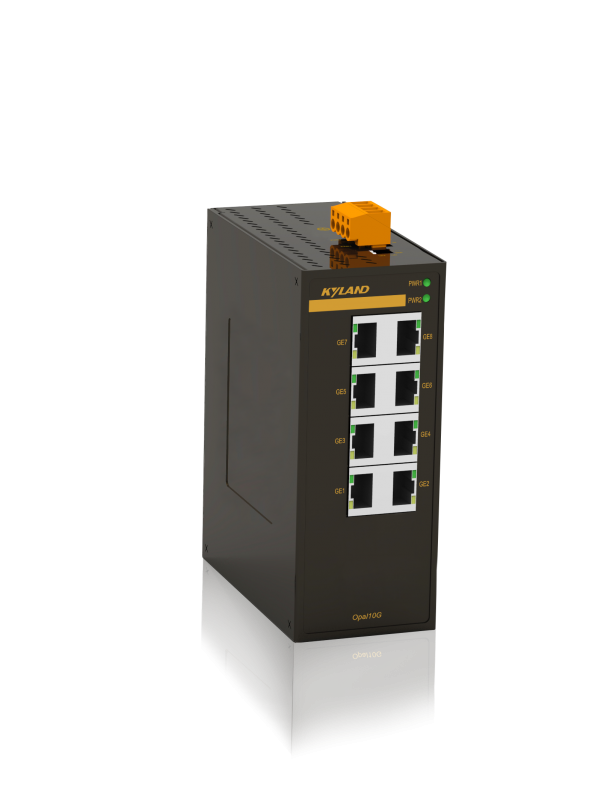

Opal 10G industriell switch
10-portars Gigabit Ethernet switch för montage på DIN-skena
Opal 10G är en omanagerad switch för industriellt bruk som stödjer Gigabit Ethernet, har dubbel strömmatning och är klassad till IP30 för att säkerställa tillförlitlig drift även i tuff miljö. Opal 10G har 2st valbara anslutningar med Gigabit Ethernet via fiber- eller RJ45-port samt 8st portar med 10/100/1000Base-TX RJ45. Swithen finns i två utförande gällande temperaturtålighet, -10°C till +60°C alternativt -40°C till +75°C, för att lättare kunna möta olika krav.
| Standard | IEEE 802.3i (10Base-T) | |
| IEEE 802.3u (100Base-TX ) | ||
| IEEE 802.3ab(1000Base-T) | ||
| IEEE 802.3z (1000Base-X) | ||
| Switch Properties | MAC Table: 8K | |
| Packet Buffer: 4Mbit | ||
| Packet Forwarding Rate: 14.9Mpps | ||
| Switching Delay:<5μs | ||
| Jumbo Frame Size: 9.6KB | ||
| Interface | Gigabit Port: | |
| 1000Base-X, SFP slot | ||
| 10/100/1000Base-T(X), RJ45 port | ||
| LED | LEDs on Front Panel | |
| Power LED: PWR1, PWR2 | ||
| Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT (Fiber port) | ||
| DIP-Switch | Enable/Disable broadcast storm protection | |
| Enable/Disable Jumbo frame transmission function (up to 9.6KB) | ||
| Power Requirements | Power Input: 12-48VDC/18-30VAC | |
| Power Terminal: | ||
| 4-pin 5.08mm-spacing plug-in terminal block | ||
| Power Consumption:<12w | ||
| Overload Protection: Support | ||
| Reverse Protection: Support | ||
| Redundancy Protection: Support | ||
| Physical Characteristics | Housing: Metal | |
| Cooling: Natural convection, fanless | ||
| Protection Class: IP30 | ||
| Dimension: 54mm×134mm×106mm (W×H×D) | ||
| Weight: 0.5Kg | ||
| Mounting: DIN-Rail or Panel Mounting | ||
| Environmental Limits | Operating Temperature: | |
| -10 to +60°C (Opal10G-E) | ||
| -40°C to +75°C | ||
| Storage Temperature: -40°C to +85°C | ||
| Ambient Relative Humidity: 5–95% (non-condensing) | ||
| Quality Assurance | MTBF: 2,486,573 hrs | |
| Warranty: 5 years | ||
| Approvals | UL508, Class I Div 2, ATEX Zone 2, IECEx, CE, FCC | |
| Industry Standard | EMI: | |
| FCC CFR47 Part 15,EN55022/CISPR22,Class A | ||
| EMS: | ||
| IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) | ||
| IEC61000-4-3(RS): 10V/m (80MHz–2GHz) | ||
| IEC61000-4-4(EFT): Power Port: ±2kV; Data Port: ±1kV | ||
| IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV | ||
| IEC61000-4-6(CS): 10V (150kHz–80MHz) | ||
| Machinery: | ||
| IEC60068-2-6 (Vibration) | ||
| IEC60068-2-27 (Shock) | ||
| IEC60068-2-32 (Free Fall) |
